Surplus to the Continuing Operation of Millennium CarbonFeaturing Blowers, Boilers, Cooling Towers, Heat Exchangers, Water Treatment Equipment, Construction Equipment, and more.Type:For Immediate SaleCategory:Construction,MetalworkingCountry:USA

Inspection

Please email [email protected]

Date

Ongoing Liquidation

Location

Kawaihae, HI

Time

Ongoing Liquidation

Auction Location

FOR IMMEDIATE SALE


BLOWERS – BOILERS – CONSTRUCTION EQUIPMENT – CONVEYORS – COOLING TOWERS –  DUST COLLECTORS – FILTERS – GENERATORS – HEAT EXCHANGERS – KETTLES – LAB EQUIPMENT – MILLS – PUMPS – SCREENERS/SIFTERS – SCRUBBERS – WATER TREATMENT EQUIPMENT – AND MORE


For more information please email [email protected]



Millennium Carbon is a manufacturer of premium activated carbon that is attractive for energy, natural gas storage, and medicinal applications.  GA Global Partners and Aaron Equipment are assisting in the sale of it’s surplus assets located in Kawaihae, HI. The sale will feature:



ROTEX VIBRATORY COOLING CONVEYOR – USED (Model 41C25):
Stainless Steel. Pan approximate 43″ wide x 92″ long. Approximate 2-1/2″ stroke, driven by a 2hp, 3/60/230/460 volt, 1750 rpm motor thru a Rotex gear box. Includes a top cover. Mounted on a carbon steel frame. Serial# C209410B, built in 2009. Stock #50895002









GOUGH ECON VIBRATORY SCREENER – USED:
Carbon steel, single deck, 2 separation, approximate 16″ wide x 50″ long. Approximate throughput 778 pounds per hour (43 cubic feet), density rated 18 pounds per cubic foot. Driven by (2) Houston vibrator motors. Mounted on a frame. Serial# 2090908, built 2010. Stock #50895001









MODERN PROCESS GRAN-U-LIZER – USED (Model IMD 8):
Carbon Steel. (2) 7″ Diameter x 30″ wide manually adjustable gap rolls, minimum gap setting 0.004″, designed for 3000 pounds per hour. Includes a top magnet, rotary feeder driven by a 1/2hp gear motor. Grinding rolls driven by a 7.5hp, 3/60/230/460 volt, 1720 rpm gear motor, ratio 8.78 to 1. Serial# F3023, built in 2009. Stock #50895003.









EVAPCO COOLING TOWER – USED (Model AT-224-018):
Approximate 525.5 tons, air flow approximate 129,100 CFM. Galvanized housing, stainless steel bottom pan. Approximate 114″ diameter fan driven by a 25hp, 3/60/230/460 volt, 1770 rpm motor with panel. Built in 2011. Stock #50895004 & #50895006. Qty. 2









PACO HORIZONTAL SPLIT CASE PUMP – USED (Model 29-8012-5) :
Used- Paco Horizontal Split Case Pump, Model 29-8012-5, Type KP, Carbon Steel. Rated 3000 gallons per minute at 90 TDH. Approximate 11″ diameter impeller, 10″ inlet, 8″ outlet. Driven by a 10hp, 3/60/230/460 volt, 1785 rpm motor with panel. Mounted on a base. Built in 2011. Stock #50895005.









LAKOS CENTRIFUGAL SEPARATOR – USED (Model HTX-1950-V/FLG):
Flow range 1950 to 4350 gallons per minute, maximum 150 psi. Approximate 24″ diameter x 110″ tall. Dished bolt on top, dished bottom. 12″ Inlet/outlet. Stock #50895008.











MUELLER STEAM SPECIALTY DUPLEX STRAINER – USED (Size 6; Model 792FDH):
Carbon steel body, stainless steel internal. Rated 285 PSI. Stock #50895009.











ENAQUA CONTAINERIZED REVERSE OSMOSIS SYSTEM – USED:
Model 1 & 2 Pass Systems. 33 GPM Consist of: (4) Protec Arisawa 8-450 membrane tubes, rated 450 psi at 120 degrees F., (3) Protec Arisawa 8-300 membrane tubes, rated 300 psi at 120 degrees F. (3) Grundfos vertical centrifugal pumps, (3) filters, 20 gallon poly tank with pump, 100 gallon poly tank, miscellaneous piping, and valves, and a control panel with an Allen-Bradley controls. Stock #50895011.

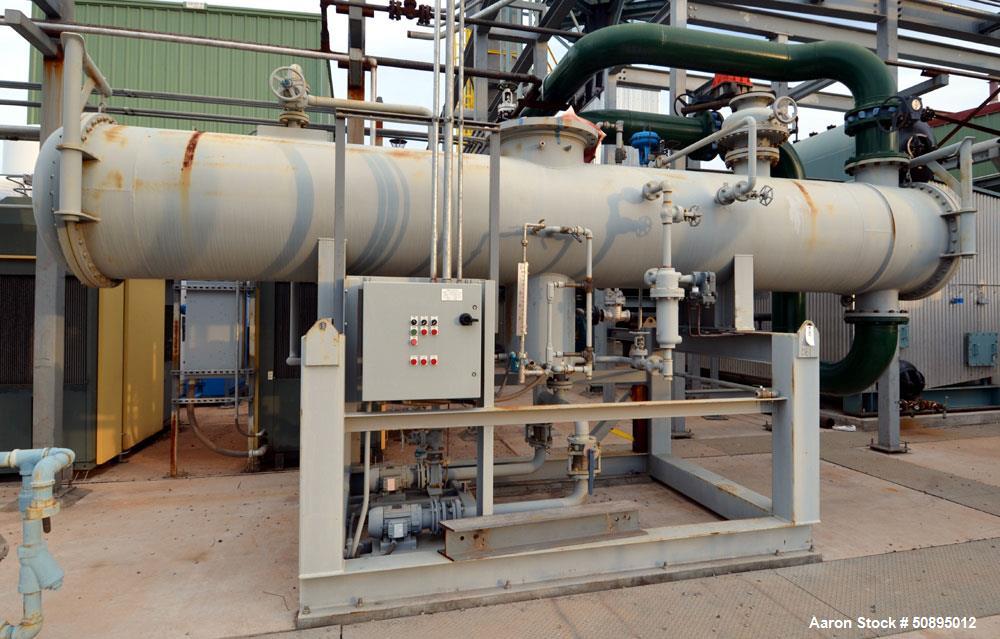

AMBASSADOR HEAT TRANSFER STEAM SURFACE CONDENSER PACKAGE – USED:
Consists of: (1) Condenser, carbon steel shell, stainless steel tubes, rated 75 psi at 55 to 150 degrees F., tube bundle approximate 20 long, National Board# 971, serial# 10-1228-1, built 2011. Secondary condenser, tubes rated 100 psi at 55 to 250 degrees F, National Board# 973, serial# 10-1228-3, built 2011, (2) 2hp pumps, and control panel. Mounted on a carbon steel frame. Stock #50895012.









CMS SINGLE PASS SHELL & TUBE HEAT EXCHANGER – USED (Model SSV):
72 Square Feet, 304L Stainless Steel, Model BEM-10-48, Vertical. (92) 3/4″ Diameter x 48″ long tubes rated 300 psi at -20 to 500 degrees F, shell rated 150 psi at -20 to 300 degrees F. Expansion joint, side lugs. National Board# 1102, serial# 2106.1, year 2010. Stock #50895013, #50895014, #50895022, #50895023, #50895024, #50895025. Qty. 6.









GOULDS VERTICAL MULTI STAGE CENTRIFUGAL PUMP – USED:
Size 1SVD-15, 316 Stainless Steel. Rated 11 gallons per minute at 183 TDH. 1.25″ inlet/outlet. Driven by a 3/4hp, 3/60/208-230/460 volt, 1725 rpm motor. Built 2010. Stock #50895015 & #50895016. Qty. 2.









BRYAN FORCED DRAFT PROPAGE GAS HEATED STEAM BOILER – USED (Model RV450_S150/15-F):
Boiler 108hp, maximum input 4500 MBH, output 3600 MBH, 150 psi, heating surface 544 square feet, steam output 3711 pounds per hour. Serial# 97922, National Board# 57313, built 2010. Includes a Riello forced draught gas burner, model RS130, gas train, and an economizer. Stock #50895027 & #50895028. Qty. 2









POWER PLANT EQUIPMENT PPE SPRAY-SCRUBBER DEAERATOR – USED:
Approximate 7000 pounds per hour. Consists of (1) Wheeler 304L stainless steel pressure tank, rated 50 psi at -20 to 450 degrees F., serial# 10060, National Board# 14329, (3) Grundfos stainless steel vertical centrifugal pumps, (1) overflow tank, and a control panel. Built in 2010. Stock #50895029.









G.C. BROACH DIRECT FIRED SUPER HEATER – USED:
Designed to charge steam, capacity 1,974 pounds per hour, duty 1,435,000 BTH an hour. Mechanical specs Radiant 1850-1500 degrees F, 55 psi, 2.875″ alloy 617 tube size. Mechanical specs Convection 1350-1100 degrees F, 55 psi, 2.875″ 304H tube size. Includes a Maxon blower, catalog# C-2940-20-FG, driven by a 5hp motor, and a control panel. Mounted on legs. Built in 2010. Stock #50895032.









MAC EQUIPMENT DUST COLLECTOR – USED (Model 18RT3):
Carbon Steel, Serial# 151183-007-1. Includes a 1/2hp Cincinnati fan, and a MAC rotary valve, model MD20, serial# 151183-009-1, driven by a 3/4hp gear motor. Mounted on a carbon steel frame. Built 2009. Stock #50895033.









CLEAVER BROOKS WATER TUBE BOILER – USED:
National Board# 4589, Built 2011. Boiler design, 600 pisg, 650 degrees F, capacity 22400 pounds per hour, heating surface 2127 square feet. Includes an inlet silencer, and a control panel. Stock #50895034.









INDUSTRIAL STEAM SPRAY – TRAY DEAERATOR – USED (Model 6ST5):
Steam Outout 19,014. Consists of (1) Wheeler pressure tank, rated 50 psi at -20 to 274 degrees F., serial# 11178, National Board# 15235, (2) 50hp Sundyne Sunflo pumps, (1) overflow tank, and a control panel. Serial# 24266A&B, built 2011. Stock #50895036.









ELLIOTT MULTI-STAGE STEAM TURBINE – USED (Model 2DYRPE3):
Rated power 2148kw, 2050 kw generator output. Speed 5620 rpm, tip speed 6182 rpm, inlet 464 psig at 662 degrees F. 3/60/4160 Volt. Stamford AC generator model P1734C. Skid mounted. Serial# E102715, built 2002. Stock #50895037.









CLEAVER BROOKS BLOWDOWN HEAT RECOVERY SYSTEM – USED (Model CBHR-10):
Includes a tank, heat exchanger. Serial# 24266-B, built 2011. Includes: Miscellaneous Parts Consisting Of: Allen-Bradley controls, valves, Cleaver Brooks Boiler Parts, Kaeser Compressor Parts, and Rotex Parts. Stock #50895059.









For more information please email [email protected]
